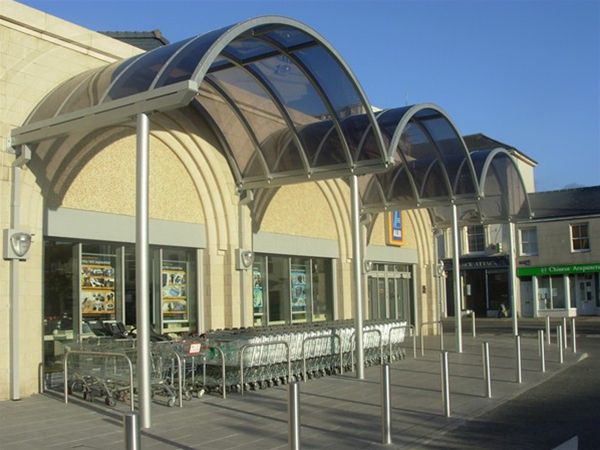

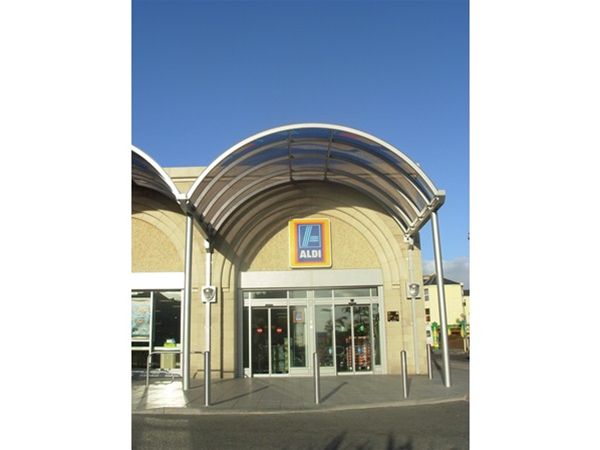

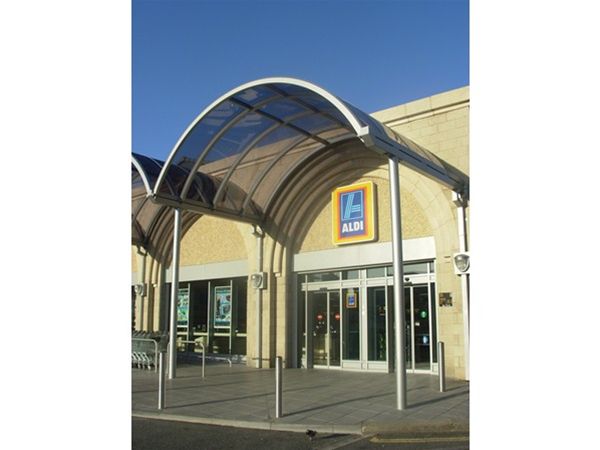

EF46 Curved Grey Polycarbonate Entrance Feature Supermarket Plymouth

The unique free standing entrance feature to the supermarket was created using a series of connecting barrel vault shaped mild steel frameworks with heavy duty CHS column supports taken to large concrete foundation bases below ground level. Glazing panels of anti sun grey solid polycarbonate sheeting were fixed to the main steel frame using aluminium polyester powder coated glazing strips. Gutters and down pipes were provided to each valley area. All steel work was fully decorated using a heavy duty exterior grade metallic paint system.
