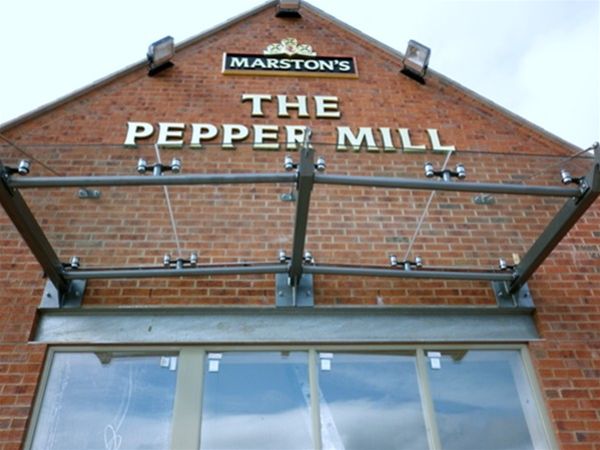

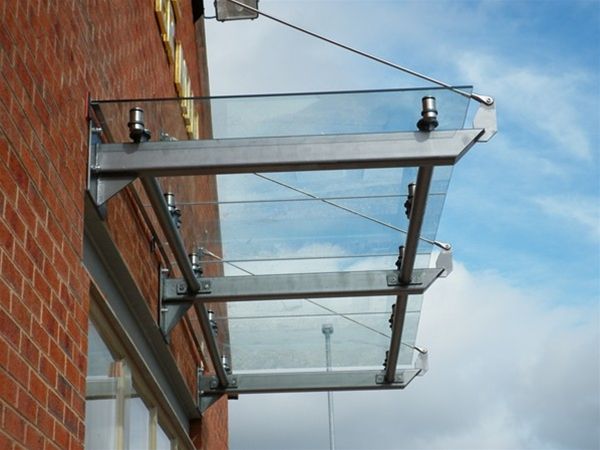

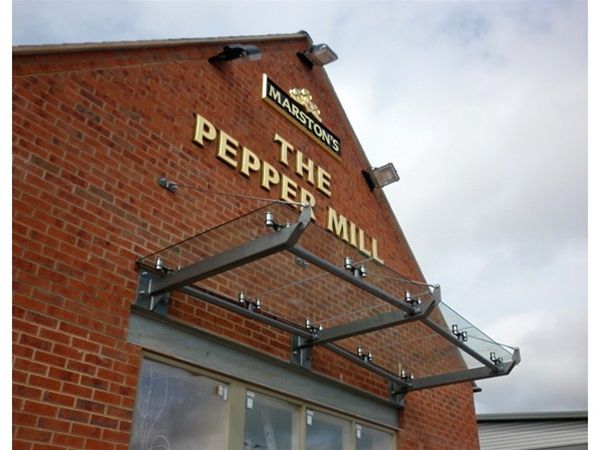

SC130 Suspended Glass Canopy Pub Entrance Stoke

A full mild steel support framework taken back and resin anchor bolt fixed to the external brickwork face. To provide extra support and rigidity a series of stainless steel rods were fixed to the front edge of the canopy and to the main structure at a higher level. All items were fully decorated using a heavy duty exterior grade enamel high gloss paint system. Glazing to the roof area was provided by the use of clear toughened safety glass panels which were securely fixed in place using stainless steel planar type fixing brackets.
