Project Description

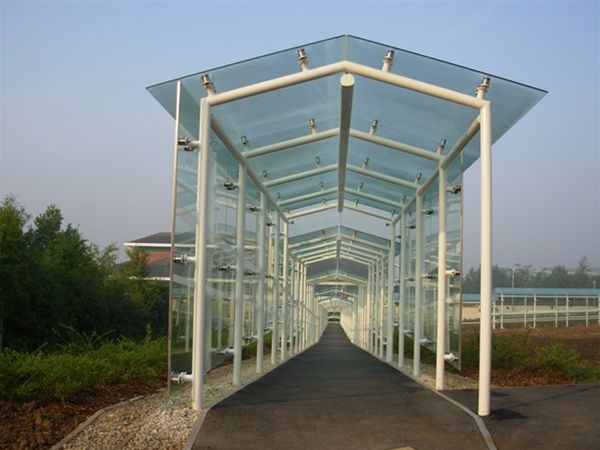

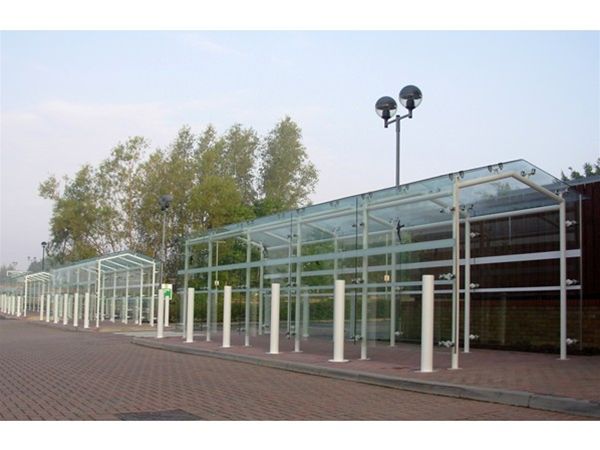

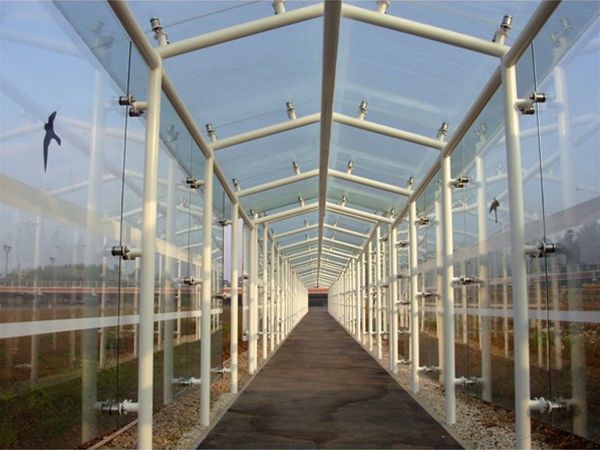

These fully enclosed walkway units provided an economical solution to connecting various buildings on the office development. The walkways were fabricated entirely from heavy duty CHS members and had to contend with numerous level and direction changes throughout its length. Support legs were taken down to concrete foundation bases below ground level and the structure was entirely free standing. Glazing to the vertical walls and roof area is provided by the use of clear toughened safety glass panels all which are supported by stainless steel planar type fixings throughout. All steel work is decorated using our standard heavy duty exterior grade enamel paint system.
