W39 Patent Glazed Glass Walkway College Berkshire

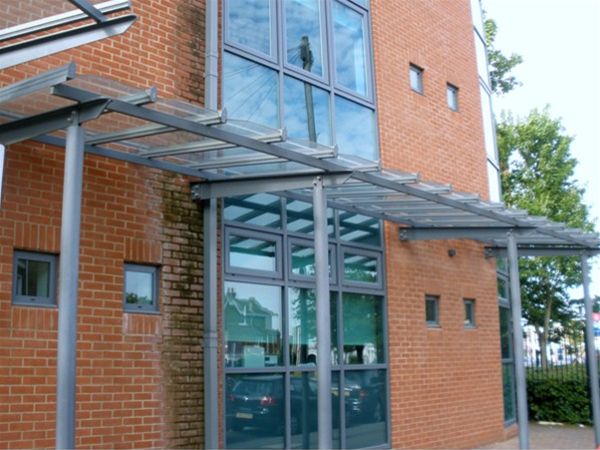

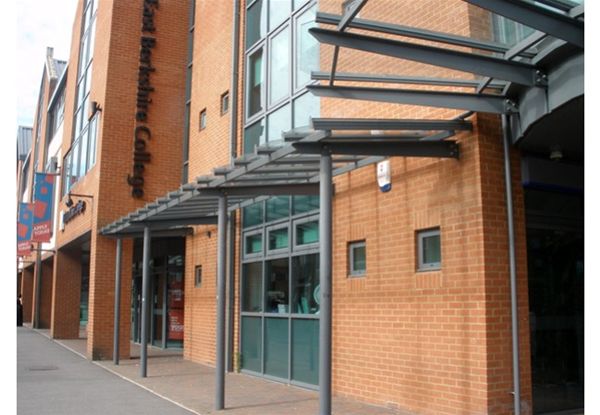

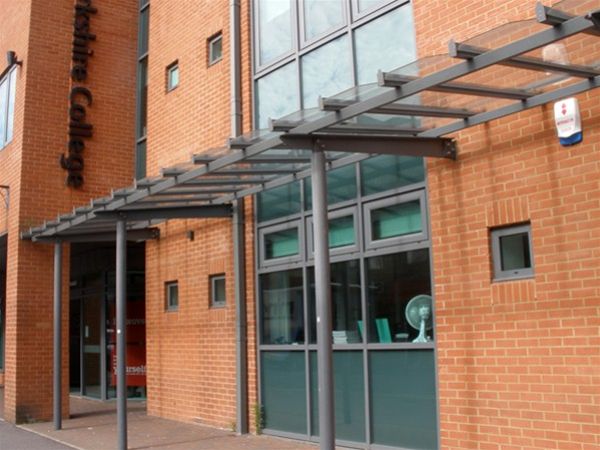

This glass walkway design provided a solution to covering an open section to each side of the college main entrance. The support frame was fabricated entirely from heavy duty CHS/RHS members. Glazing to the glass walkway roof area is by the use of clear toughened safety glass panels fixed in an aluminium polyester powder coated patent glazing bar system. Support legs are resin anchor fixed to concrete foundation bases with horizontal supports fixed back to the main structure for extra support. All steel work is decorated using our standard heavy duty exterior grade enamel paint system.
